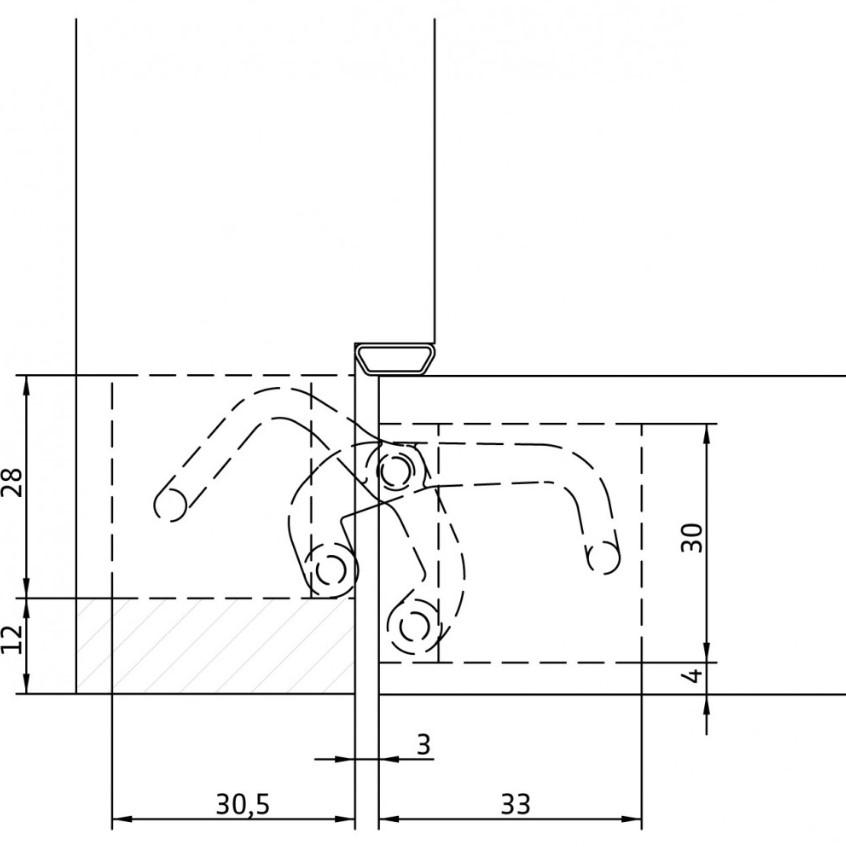

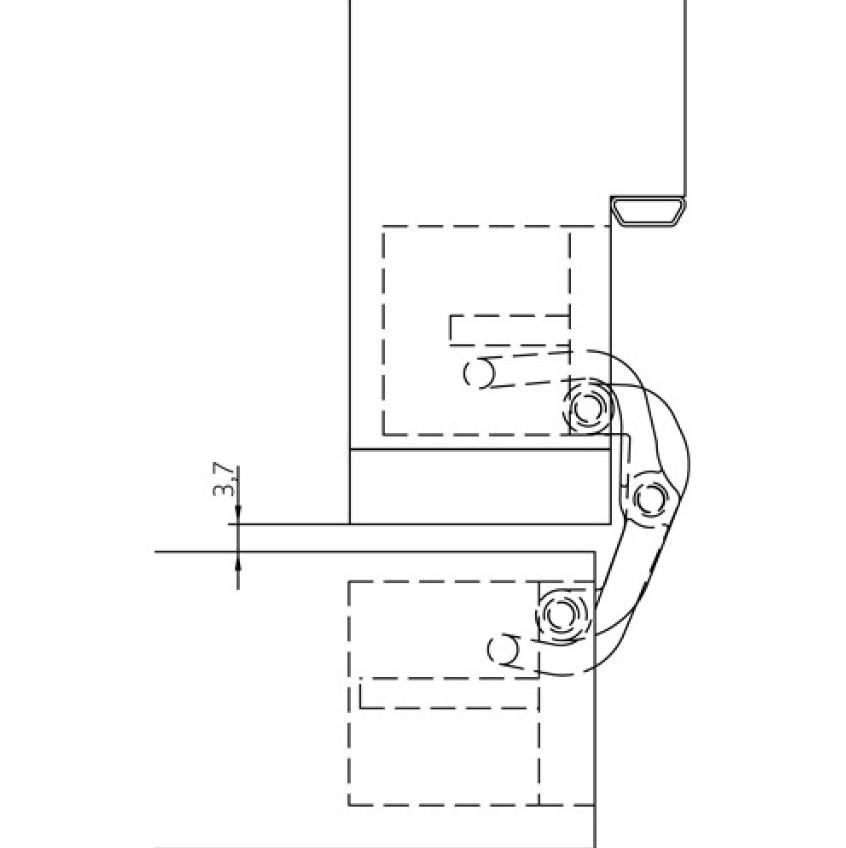

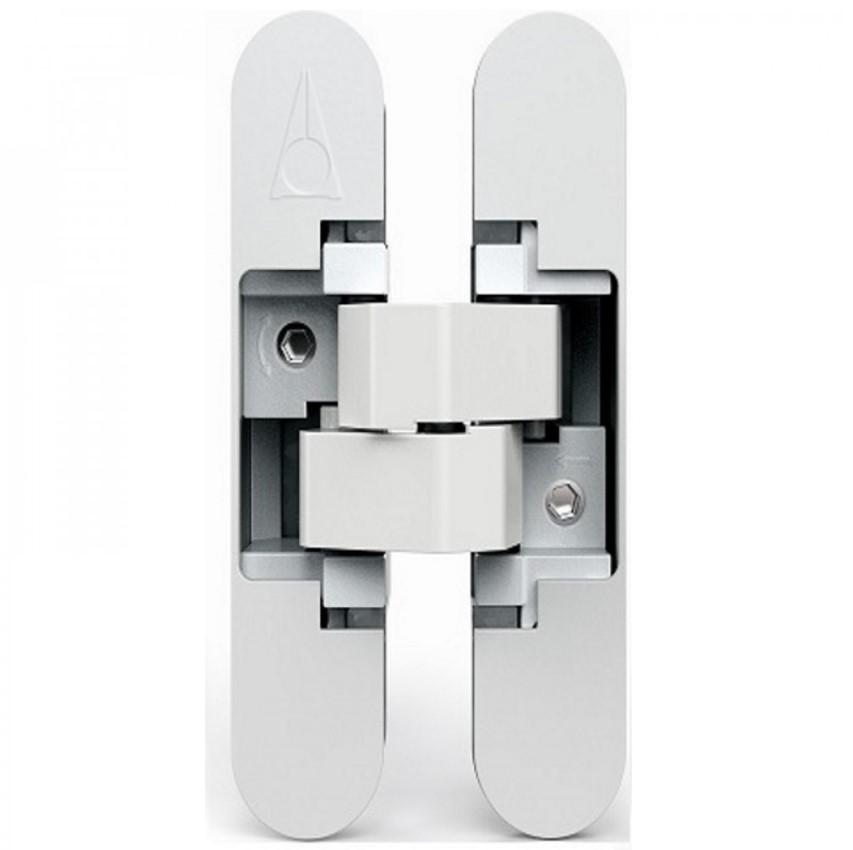

Hidden hinges for non-rebated interior doors.
Universal hinge made of ZAMAK alloy , maximum load 20 kg/pc.
Minimal door leaf thickness 45 mm.

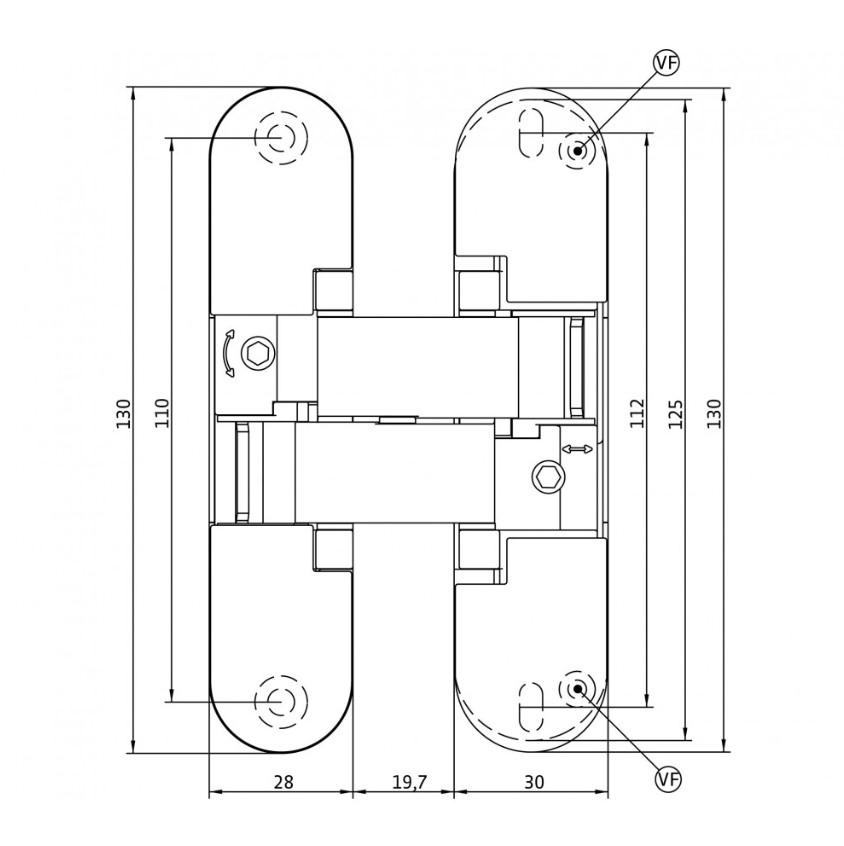

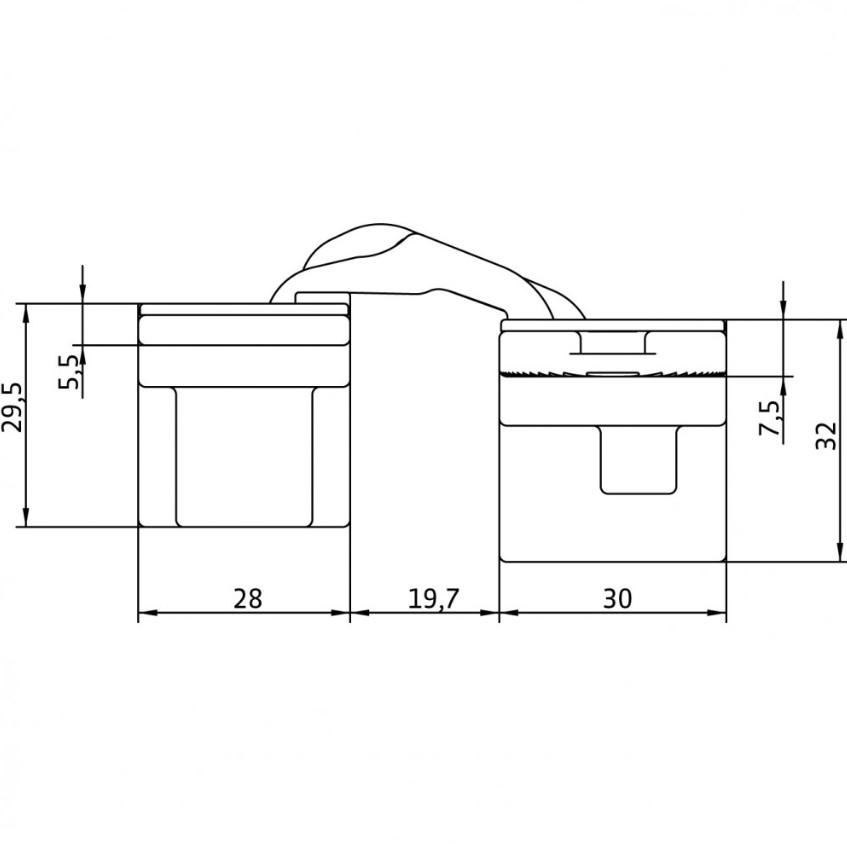

Hinge height 134 mm, width 34 mm on the sash side, 32 mm on the frame side.
The hinges are adjustable in three dimensions (independently of each other).
Adjustment: vertical +/- 1.5 mm; horizontally +/- 1 mm; to a depth of +/- 1 mm.
| Weight, kg | 0.300000 |
|---|---|
| Country of origin | Italy |
| Model Name | AN 141 3D FVZ 12/38 (511) |
| Brand | ANSELMI |
| Material | Zamak |
| Hinge type | Concealed hinges |
| Quantity | 1 |
| Manufacturer warranty | 24 months |
