Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)
Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)

Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)

Add to Wish List
As low as €23.00
Add to Compare
Ask a Question

Ask a Question

In stock
Only %1 left
SKU
AN_141_3D_FVZ_12_45_513
For doorsHingesConcealed hinges
No Attachments!

Hidden hinges for non-rebated interior doors.

Universal hinge made of ZAMAK alloy, maximum load 20 kg/pc.

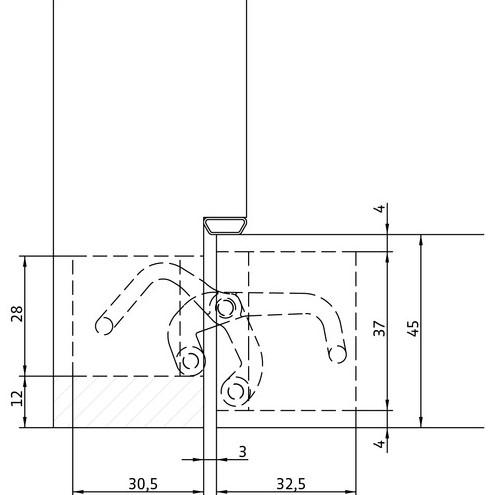

Opening angle 180°. Minimal door leaf thickness 44/45 mm.

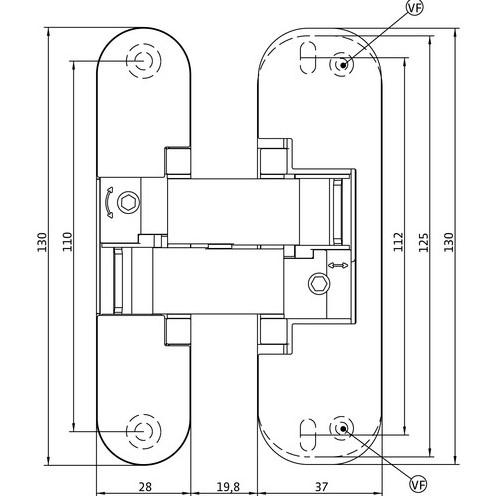

Hinge height 130 mm, width 37 mm on the sash side, 28 mm on the frame side.

The hinges are adjustable in three dimensions (independently of each other).

Adjustment: vertical +/- 2.5 mm; horizontally +/- 1mm; to a depth of +/- 1 mm.

More Information
Weight, kg 0.300000
Country of origin Germany
Model Name AN 141 3D FVZ 12/45 (513)
Brand SIMONSWERK
Material Zamak
Hinge type Concealed hinges
Door material Steel doors, Wooden doors, Steel and wooden doors
Quantity 1
Manufacturer warranty 24 months

Concealed hinges ANSELMI AN 141 3D FVZ 12/45 (513)

As low as €23.00
