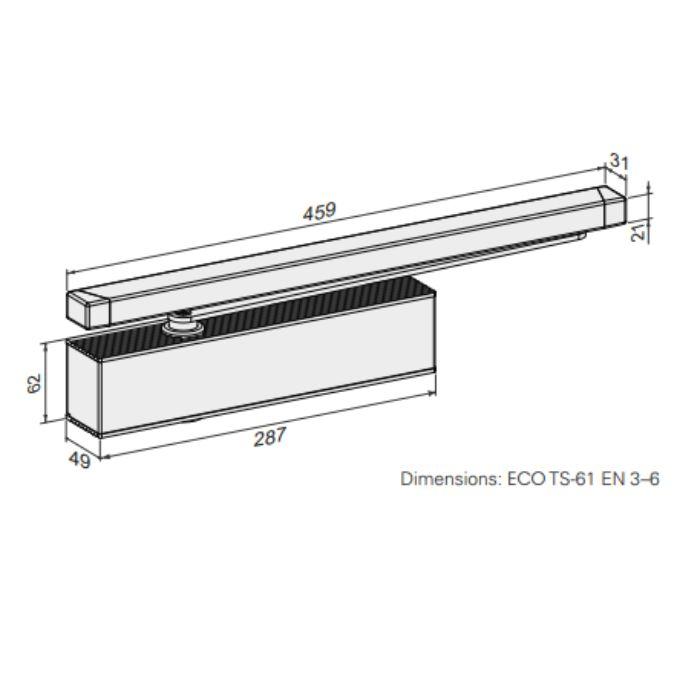

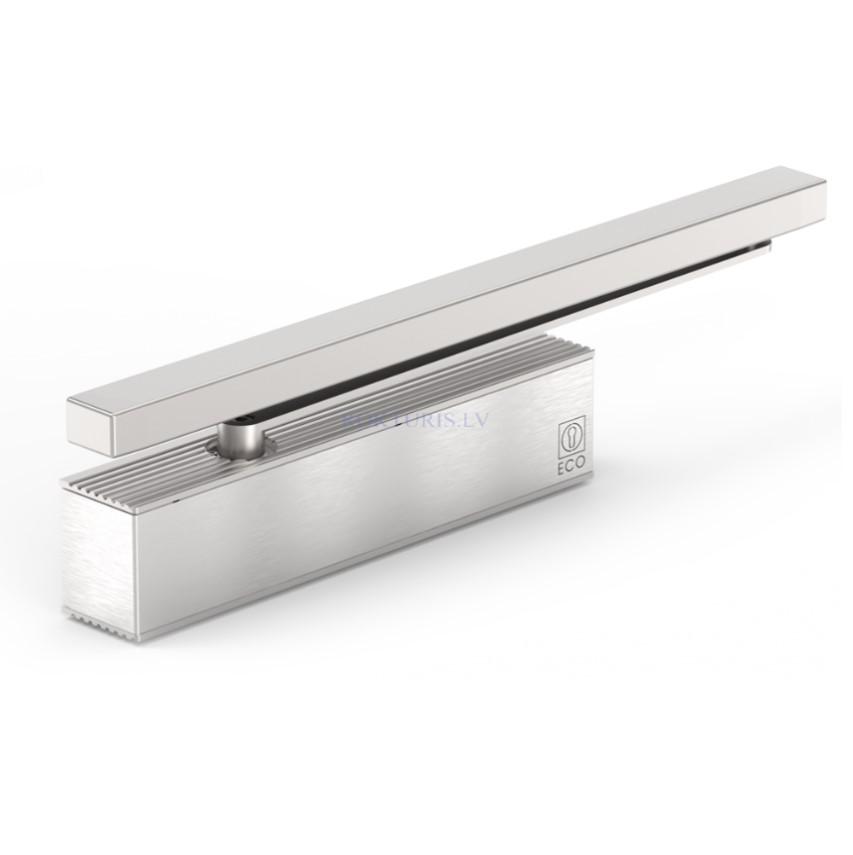

ECO Newton TS-61 EN 3–6
Closing force 3–6 according to EN - SG, ES, ÖD, SV
Tested and certified in accordance with EN 1154
EN 3–6 leaf widths up to 1,400 mm
Leaf weights up to 120 kg
Extended leaf weights up to 250 kg (separate, object-specific assessment with manufacturer’s declaration by ECO Support/PM)
DIN-L = DIN-R usability
Sufficient power reserve even with large doors
Greater door weights up to 300 kg (object-specific manufacturer’s declaration from ECO necessary)

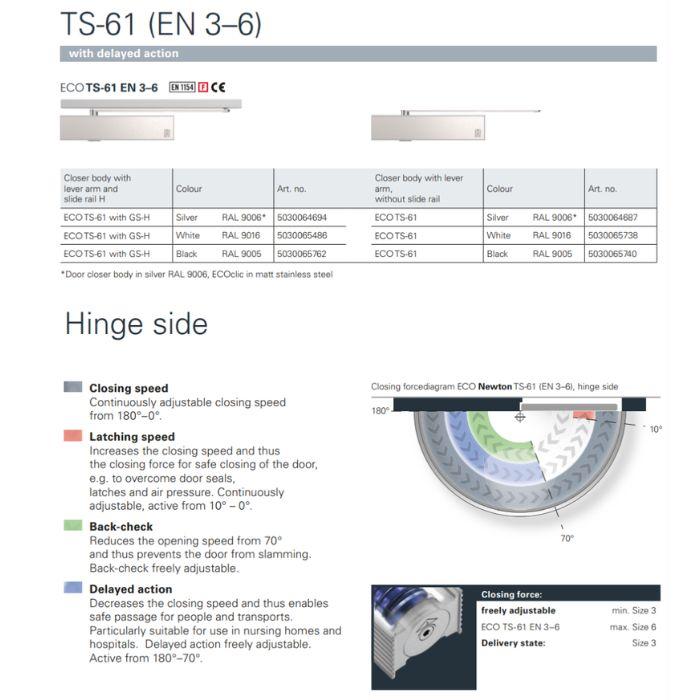

Integrated, adjustable delayed action (180°–70°)
DIN 18040 (requirements on the construction of accessible buildings) up to EN 4
Optimised lever arm, 4 mm

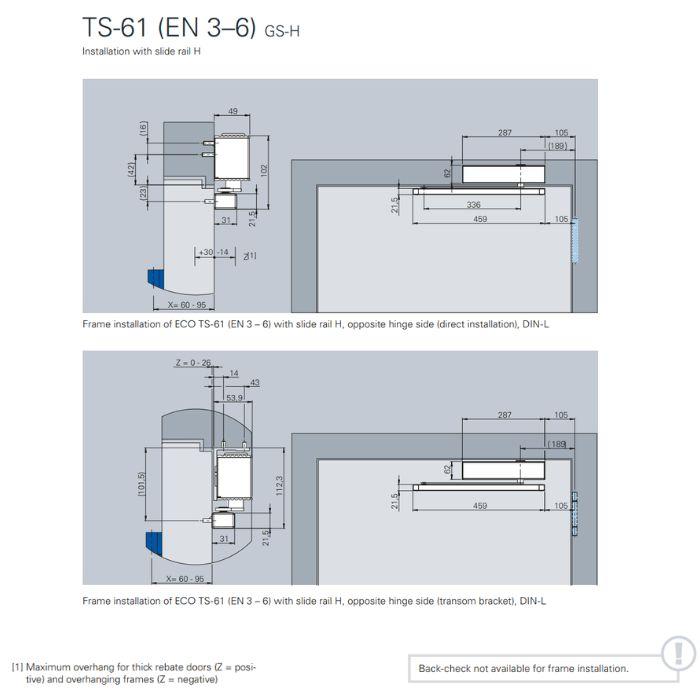

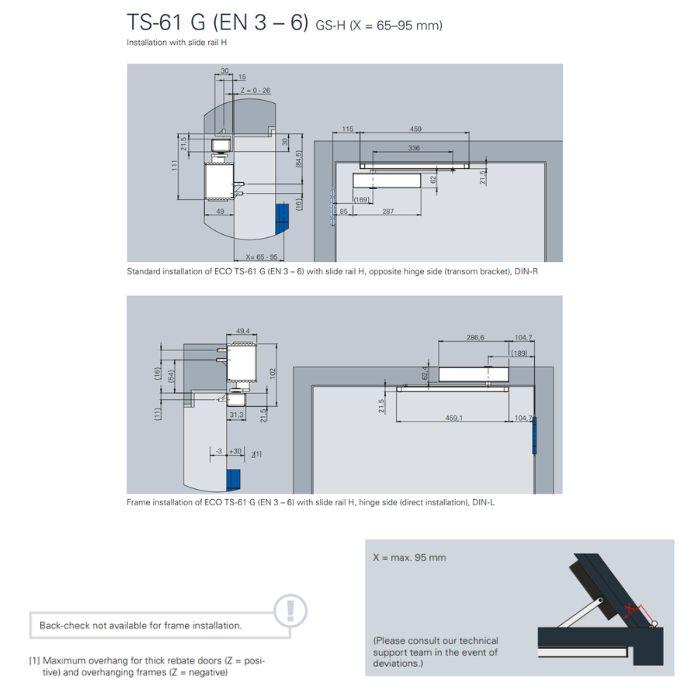

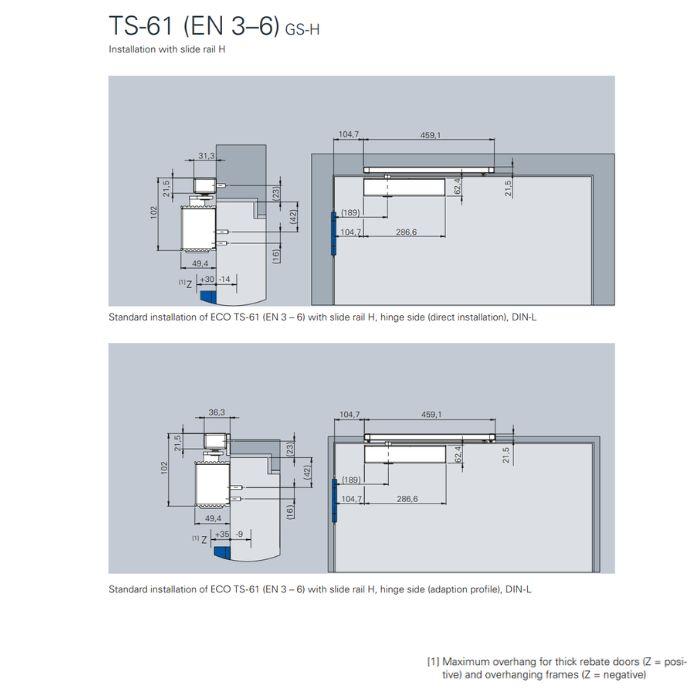

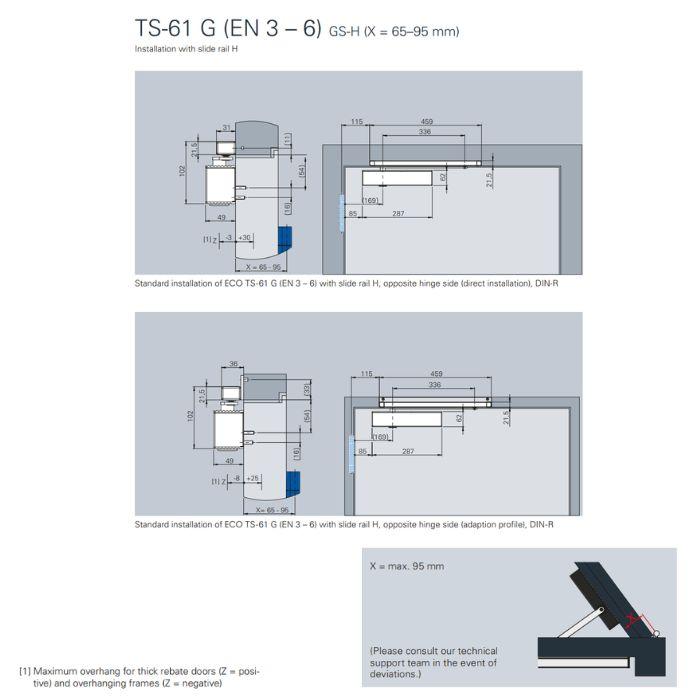

New slide rail GS-H, height-adjustable with hidden screw attachment
Optional

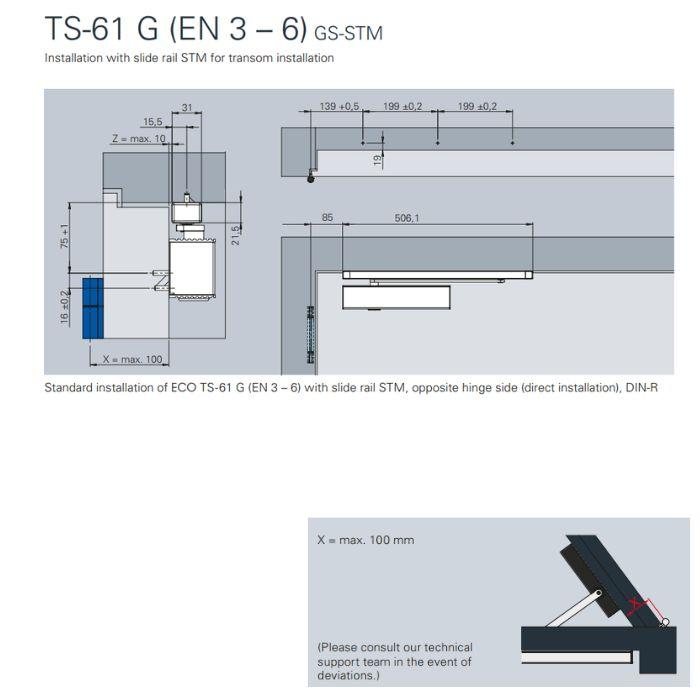

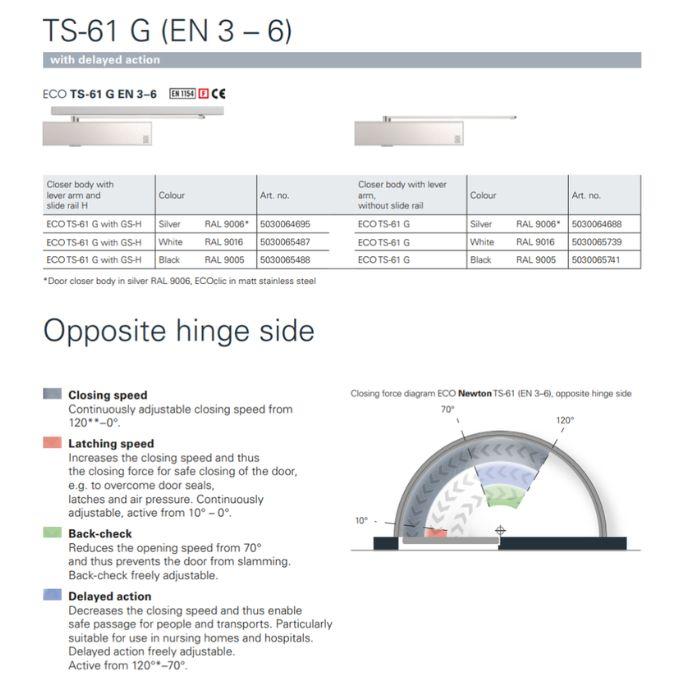

Optional slide rail for opposite hinge side – ECO GS-STM, for screwing directly into the transom (the previous SFW is no longer required)

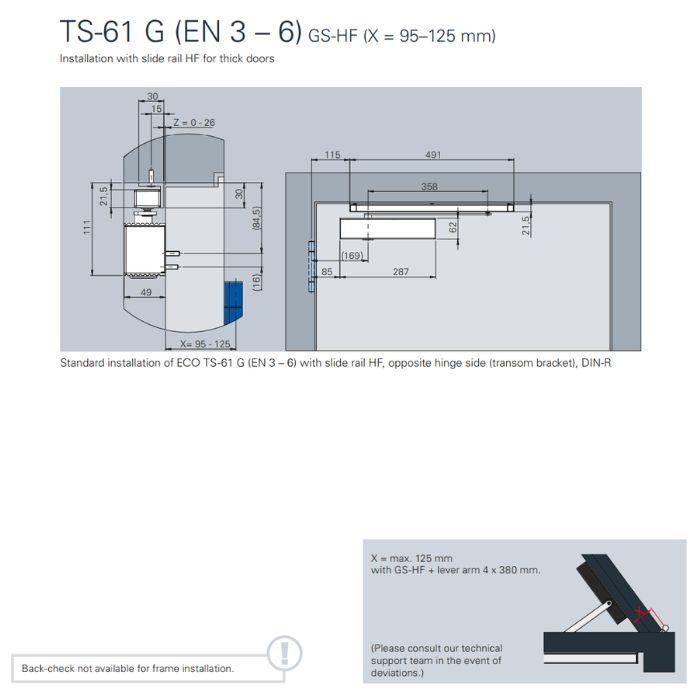

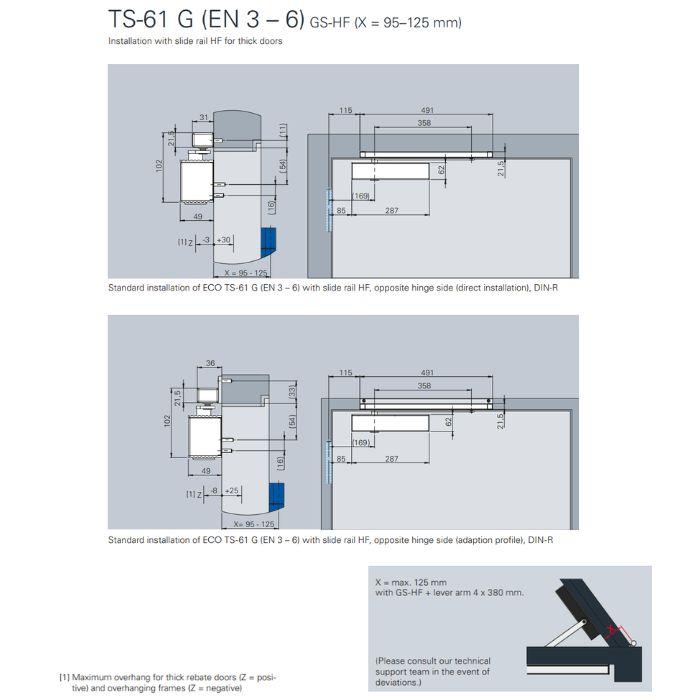

Optional, extended slide rail and lever arm for oppo- site hinge side – ECO GS-HF for special doors with door thicknesses up to 120 mm (X dimension)
Optional, adjustable latch-locking device (no FS/RS) ECO FKL-E
Optional ECO ÖB GS-H back-check for smooth braking of the door – can also be used outdoors (mounting instructions with wind load tool)
| Weight, kg | 3.000000 |
|---|---|
| Country of origin | Germany |
| Model Name | TS-61 EN 3–6 |
| Material | Stainless Steel |
| Brand | ECO SCHULTE |
| Closer type | Overhead door closers |
| Fire-resistance | For fire-resistance doors |
| Quantity | 1 |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 500 x 50 x 80 |
