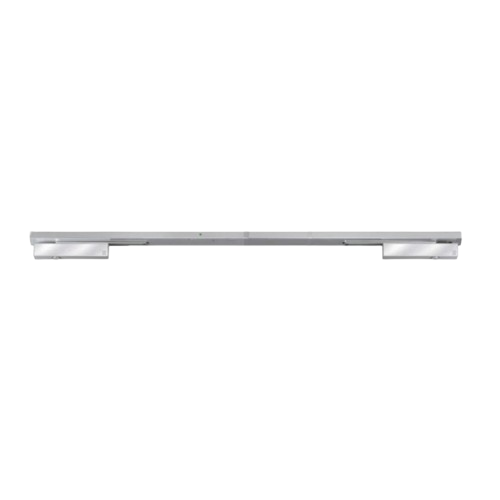

Door coordinator for double leaf doors Eco Schulte SR III

Installation of the system: DIN L/DIN R can be used variably. The DIN direction can be chosen freely on site.

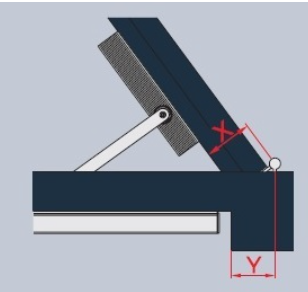

Opening angle: max. 175° (depending on the rebate and frame geometry)
Minimum size passive leaf: 360 mm (for TS-41) or 400 mm (for TS-61)
Delivery: Incl. associated middle cover (latching system), mounting parts and Torx fastening screws.
The use of the ECO MK 1 driver flap is required for full panic doors.

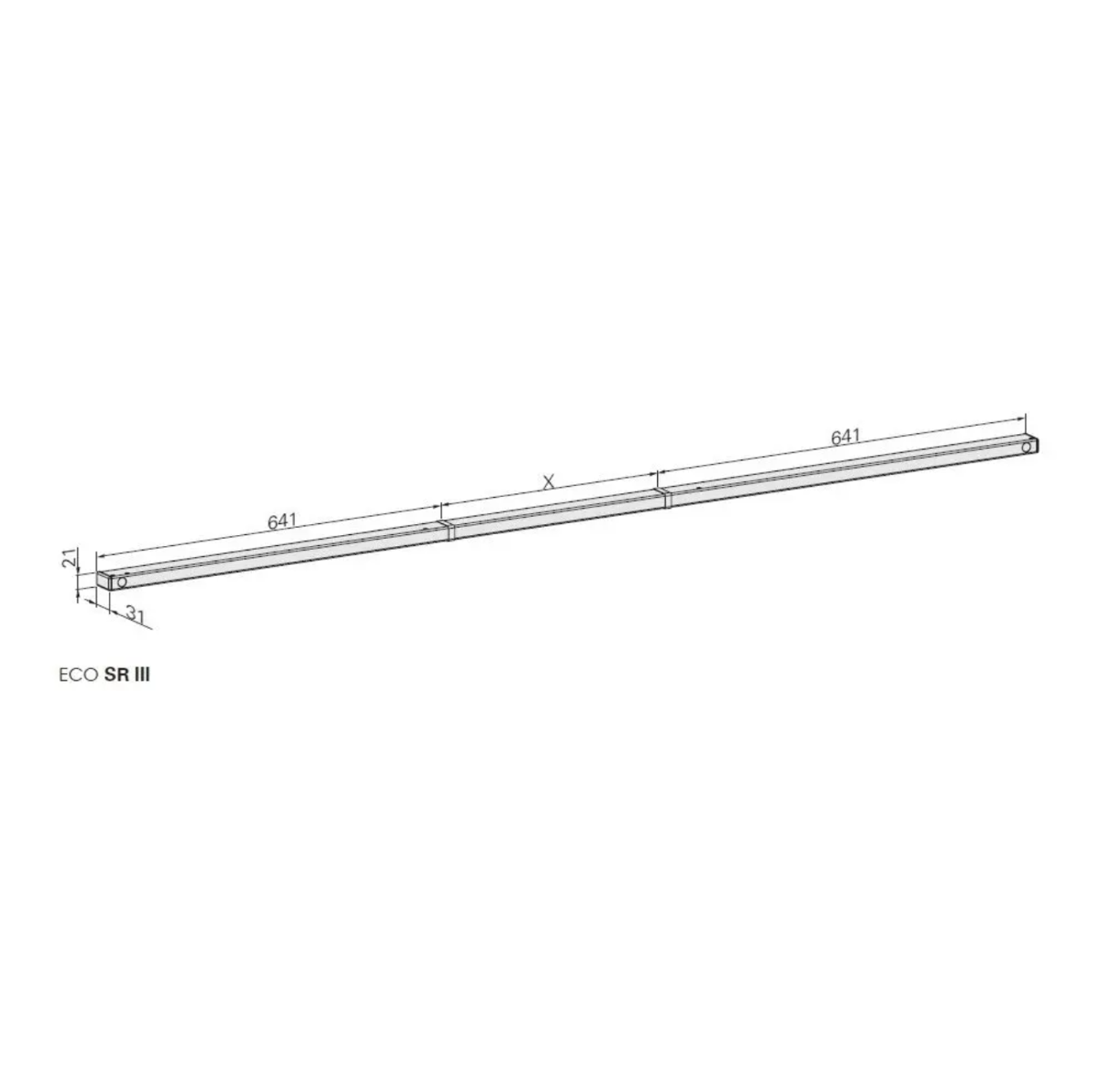

Slide rails door coordinator: Ensures that the closing sequence of the passive and active leaf is in the prescribed order, i.e. the active leaf always closes after the passive leaf.
When opening the passive leaf, brake wedges in the active leaf slide rail (mechanically independent of the door closer hydraulics) ensure that the active leaf stops as soon as the inactive leaf is opened.
Tested acc. to EN 1158.

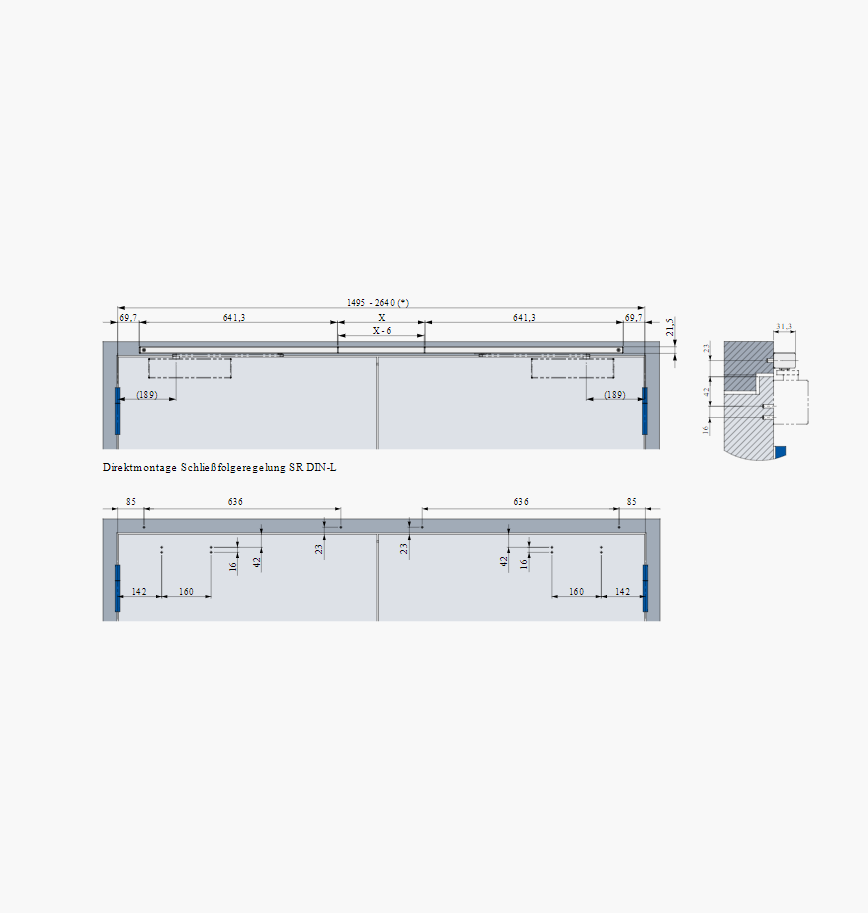

Hinge gap: 1,495 – 2,640 mm
*For smaller hinge gaps (min. hinge gap 1,320 mm), the GF profile must be shortened and, if necessary, the door closers must be relocated.
Please observe the notes in the mounting instructions.
For larger hinge gaps (2,645-2,800 mm), please also order the extended connection rod VBSECOSR III.
