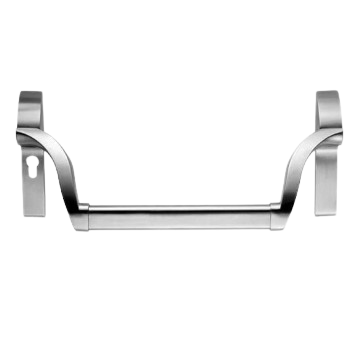

Push bar for panic doors Eco Schulte EPN 900 IV

Push bar for emergency doors

Suitable for use in panic (emergency exit) doors according to EN 1125 in combination with B, D and E function locks

Suitable for use on smoke control and fire doors

The door can be opened by pushing the bar

Lever arms are cranked particularly wide and facilitate the use of electronic locking cylinders

Large, sturdy grip tube (vandalism)

Lever arms and bar screwed together with high-strength connection

Universal use for DIN right and left hand doors

Spindle square: 9 mm

PZ key hole

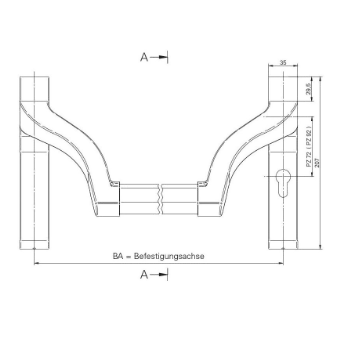

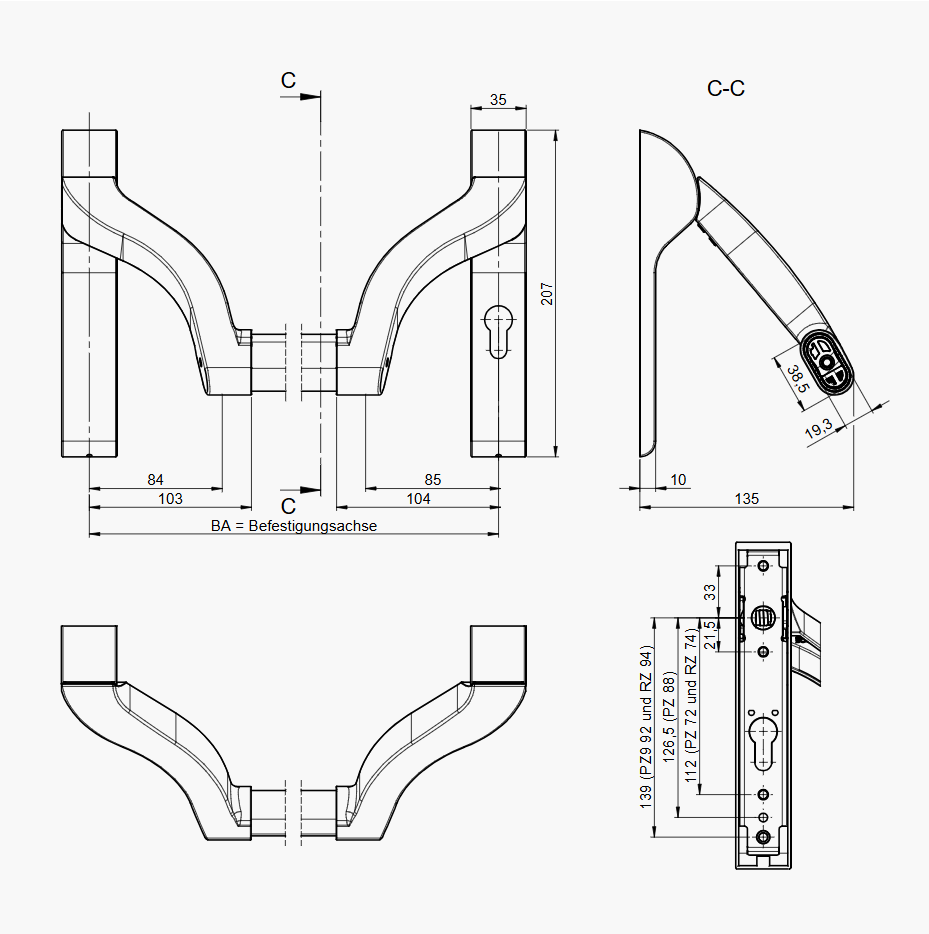

Centre distance: 72 mm / 92 mm

Push bar backplate size: 200 x 35 mm, thickness - 10 mm

Standard bar length: 900 mm (for leaf width of 1000 mm) / 1150 mm (for leaf width of 1300 mm)

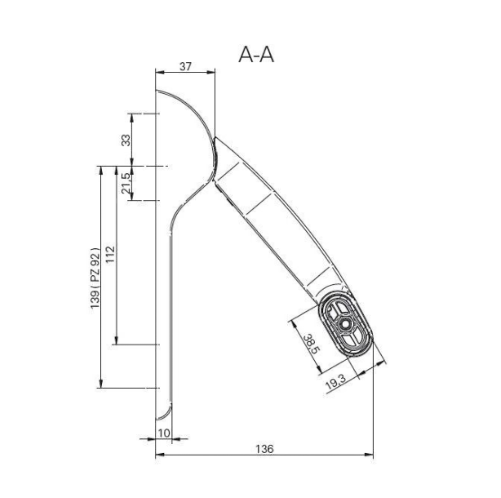

Oval bar cross section 30/15 mm

Operational angle 45°

Material: stainless steel

Gear unit: steel zinc-plated

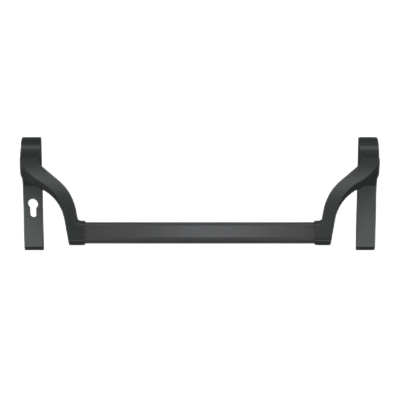

Available finishes: stainless steel, matt satin finish, coated aluminium F1 tone, black, black / red
