Voltage: 12V
Purpose: Magnetic
Adjustable keeper (FF, FaFix®): Yes
Mechanical unlocking (E): Yes
Fail-locked: Yes
Break-in resistance: 3000 N

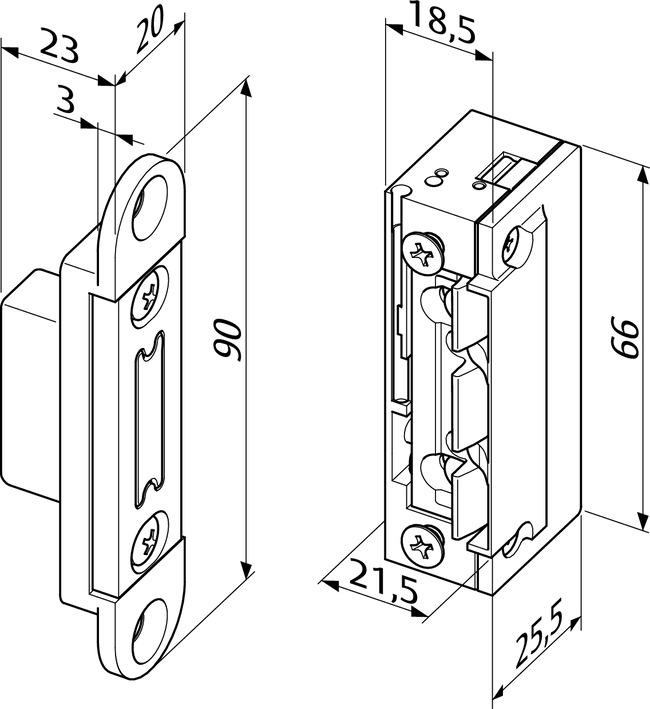

Height mm: 90
Width mm: 20
Depth mm: 23
Operating temperature range: -15 °C to +40 ºC
| Weight, kg | 0.200000 |
|---|---|
| Country of origin | Germany |
| Model Name | 9318 |
| Material | Steel |
| Brand | EFF EFF ASSA ABLOY |
| Type of electric strike | Special applications |
| Electric strike configuration | Fail-secure - Normal closed |
| Electric strike DIN direction | Universal |
| Operating temperature range | -15 °C to +40 °C |
| Quantity | 1 |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 95 x 35 x 25 |
