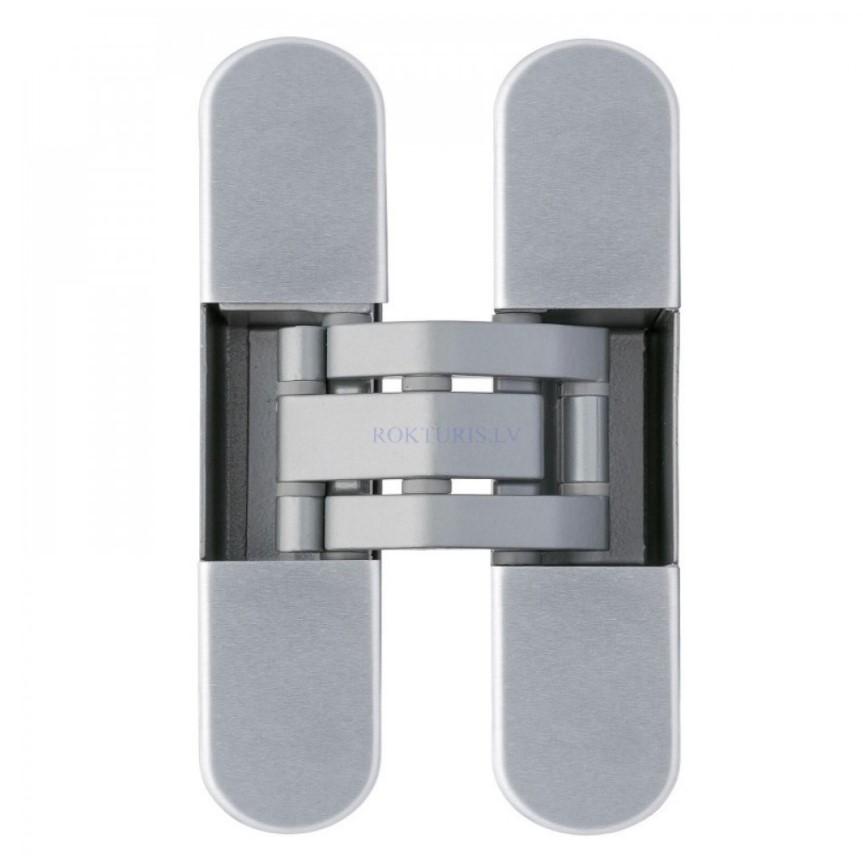

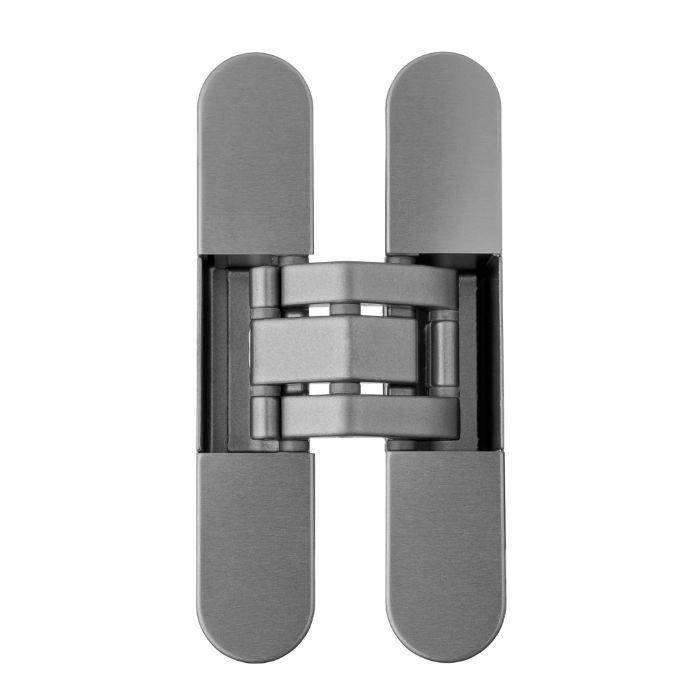

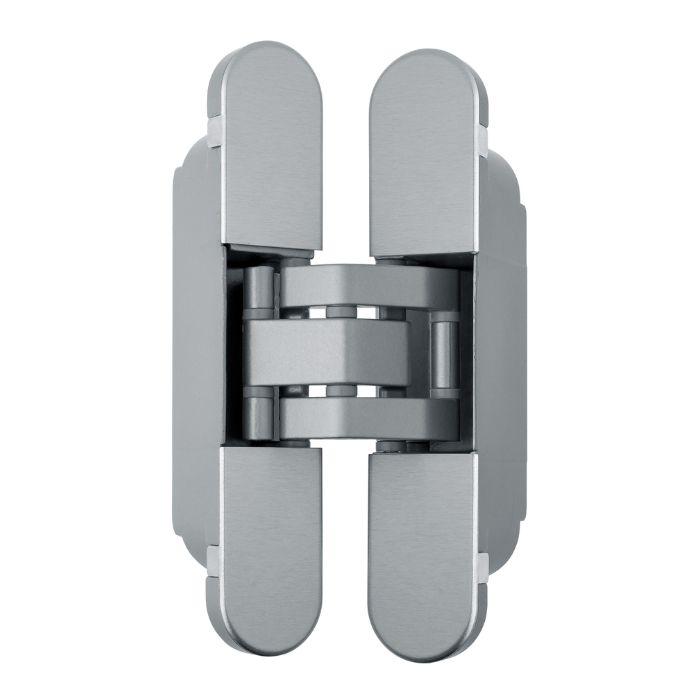

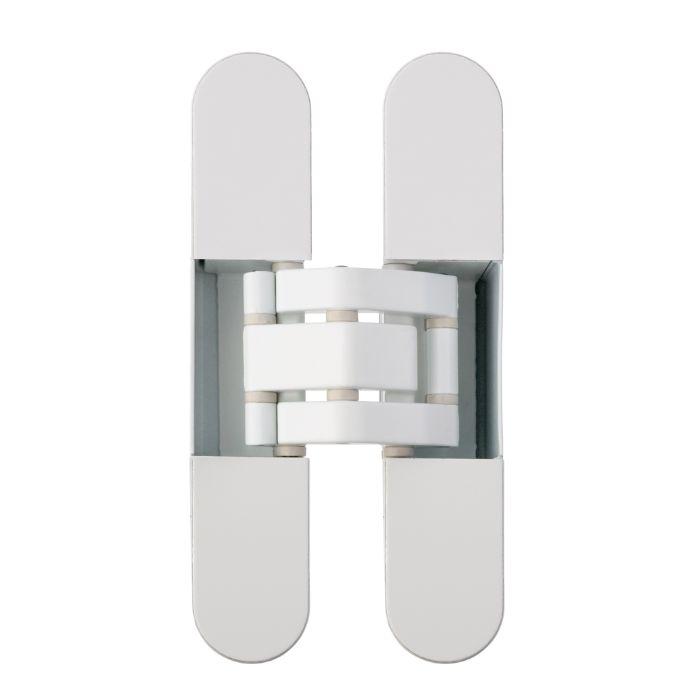

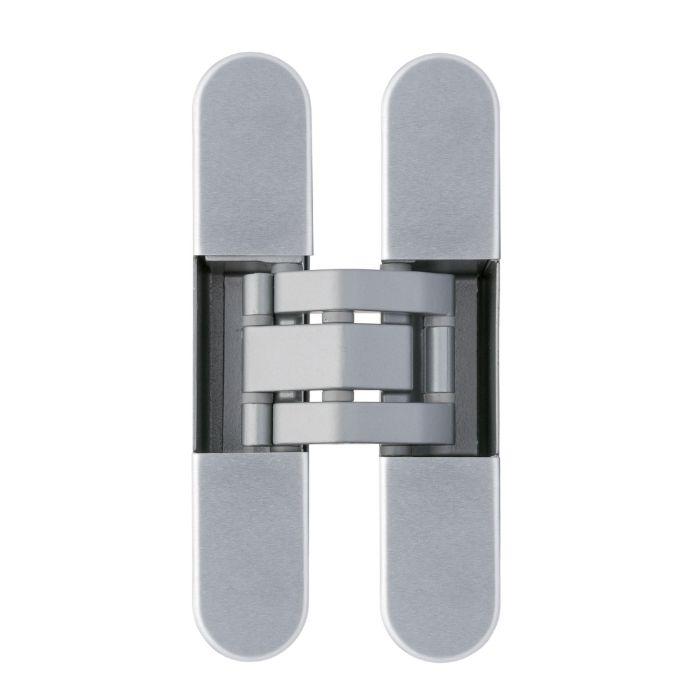

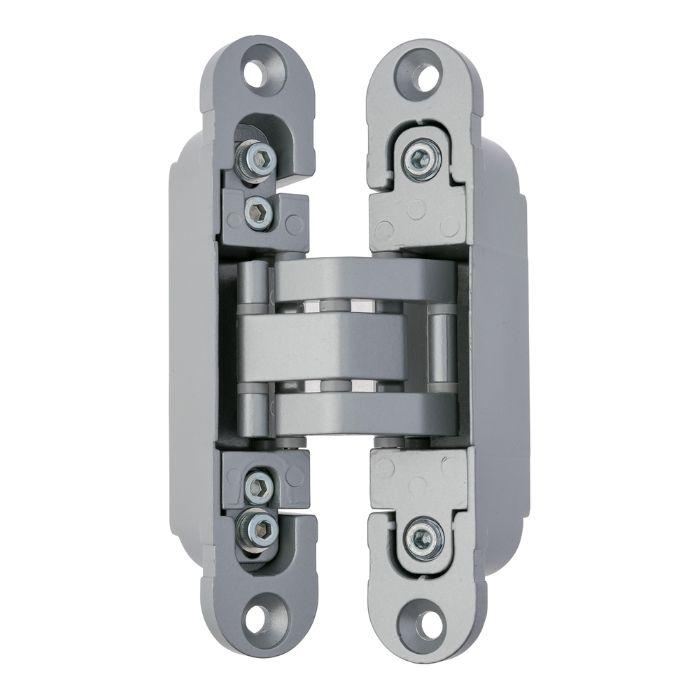

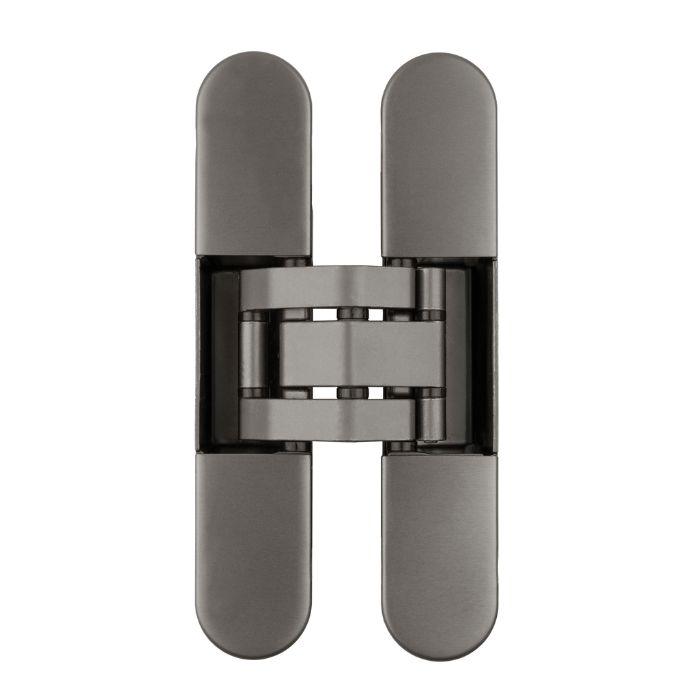

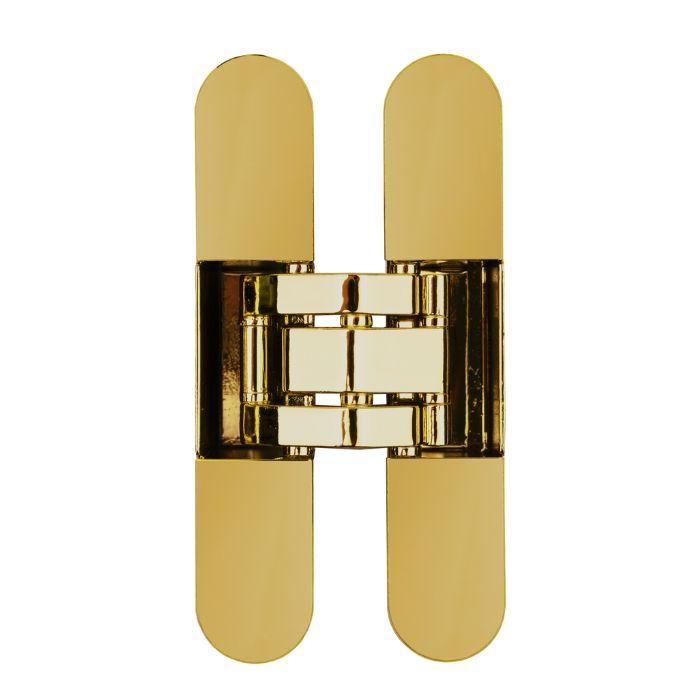

Hidden hinges for non-rebated interior doors.

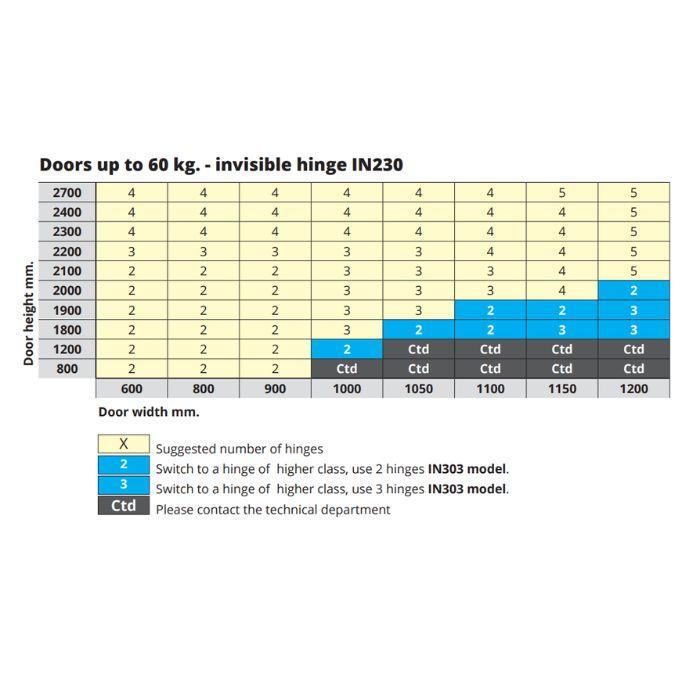

Universal hinge made of ZAMAK alloy, maximum load 60 kg/ 2 pc.
Minimal door leaf thickness 40 mm.

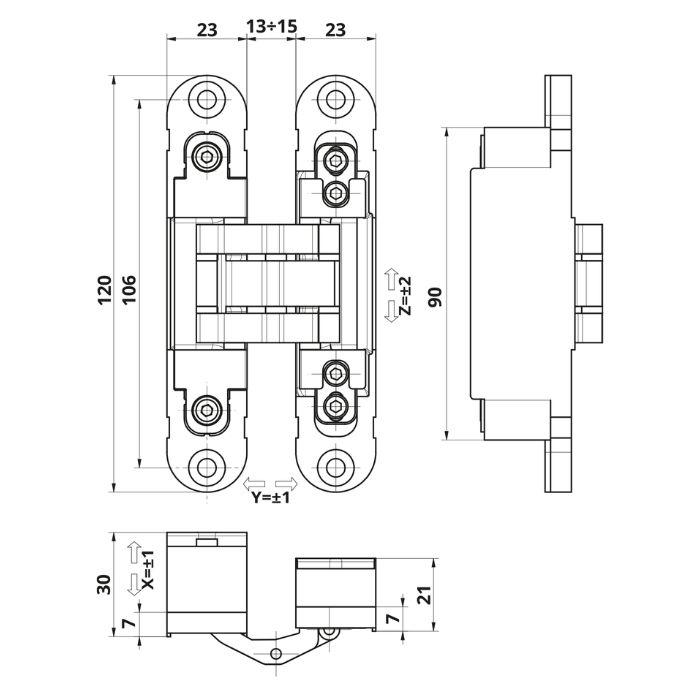

Hinge height 120 mm, width 23 mm.
The hinges are adjustable in three dimensions (independently of each other).
Adjustment: vertical +/- 2 mm; horizontally +/- 2 mm; to a depth of +/- 1 mm.

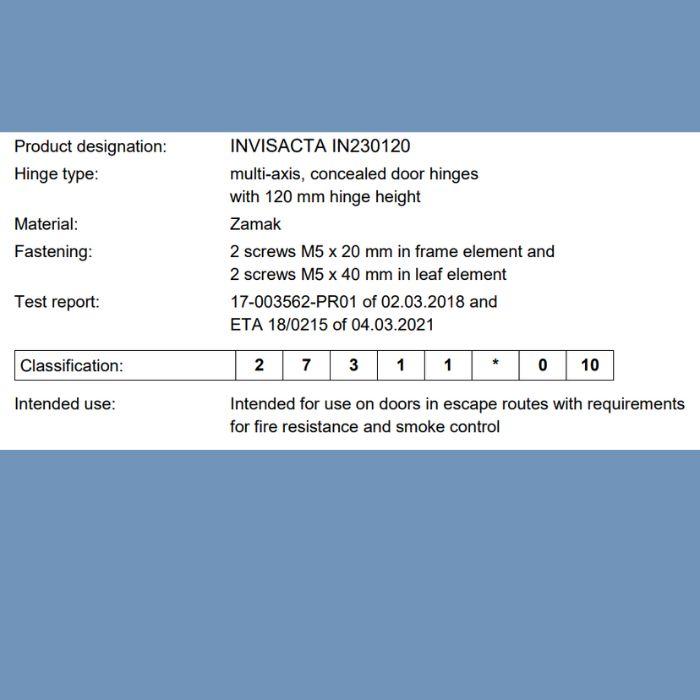

The hinges have a fire certificate (30 minutes). Certified for 200,000 opening cycles.
| Weight, kg | 0.300000 |
|---|---|
| Country of origin | Italy |
| Model Name | IN230 |
| Brand | OTLAV |
| Material | Zamak |
| Hinge type | Concealed hinges |
| Manufacturer warranty | 24 months |
