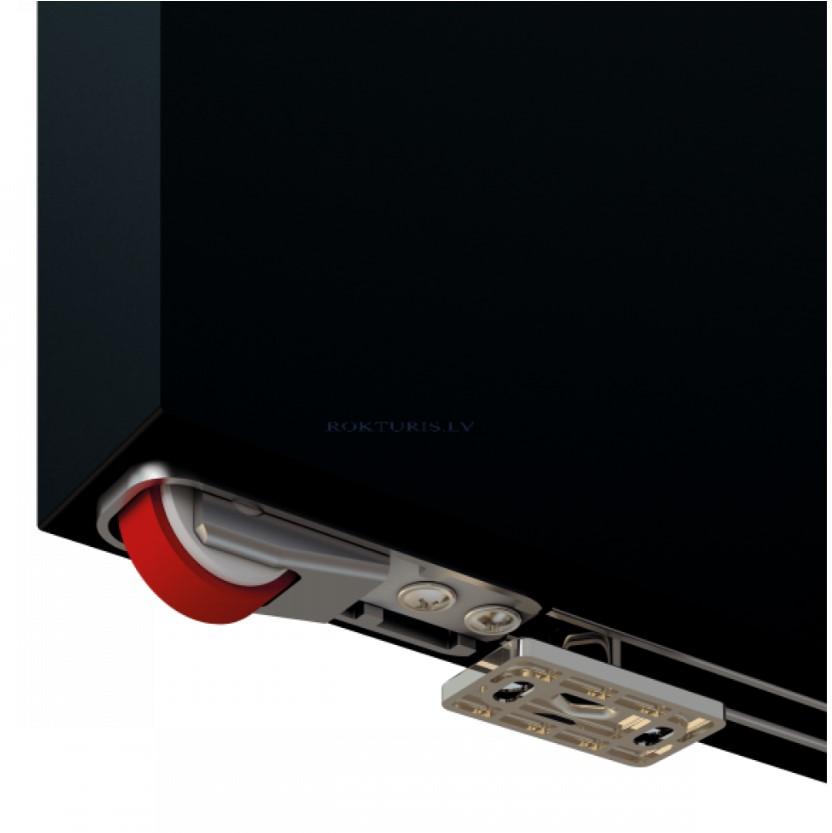

The MAGIC 2 sliding door system is designed for internal sliding doors that slide on the outside of the wall. This is a unique system that does not require a rail, wooden beam or a special finishing box to hide the rail. Quiet and long-lasting sash rolling is ensured by bearing castors, which are wider than the Magic 2 predecessor, which ensures better and softer door slip.
Brakes up to 20 mm longer - 50 mm before full closing / opening, the system brakes the door and gently pulls it to the final position. Adjusting the Magic 2 system is now even more convenient. Patented adjustment is possible even without removing the sash.
Maximum load 80 kg
The minimum sash width is 800 mm
Maximum possible sash width 1100 mm (maximum covered opening width 1000 mm) or 1800 mm (maximum covered opening width 1700 mm)
The system is particularly convenient and quick to install.
The system consists of:
Height adjustable bearing castors;
The "concealed" rail is attached to the sash;
Guide;
Two "soft close" brakes - shock absorbers - in the closed and open positions will prevent knocking on the door, as well as protect your fingers from injury.
Our advice: The only limitation to the system is that it is not advisable to install it where there is a carpet at the opening. The sash must be at least 60 mm higher than the opening.
| Weight, kg | 5.000000 |
|---|---|
| Country of origin | Italy |
| Model Name | Magic 2 |
| Door material | Wooden doors |
| Mode of operation | Manual system |
| Mounting type | To wall |
| Door leaf weight | 80 KG |
| Brand | TERNO SCORREVOLI |
| Quantity | 1 |
| Manufacturer warranty | 24 months |
| Package sizes, mm | 1400 x 100 x 100 |
